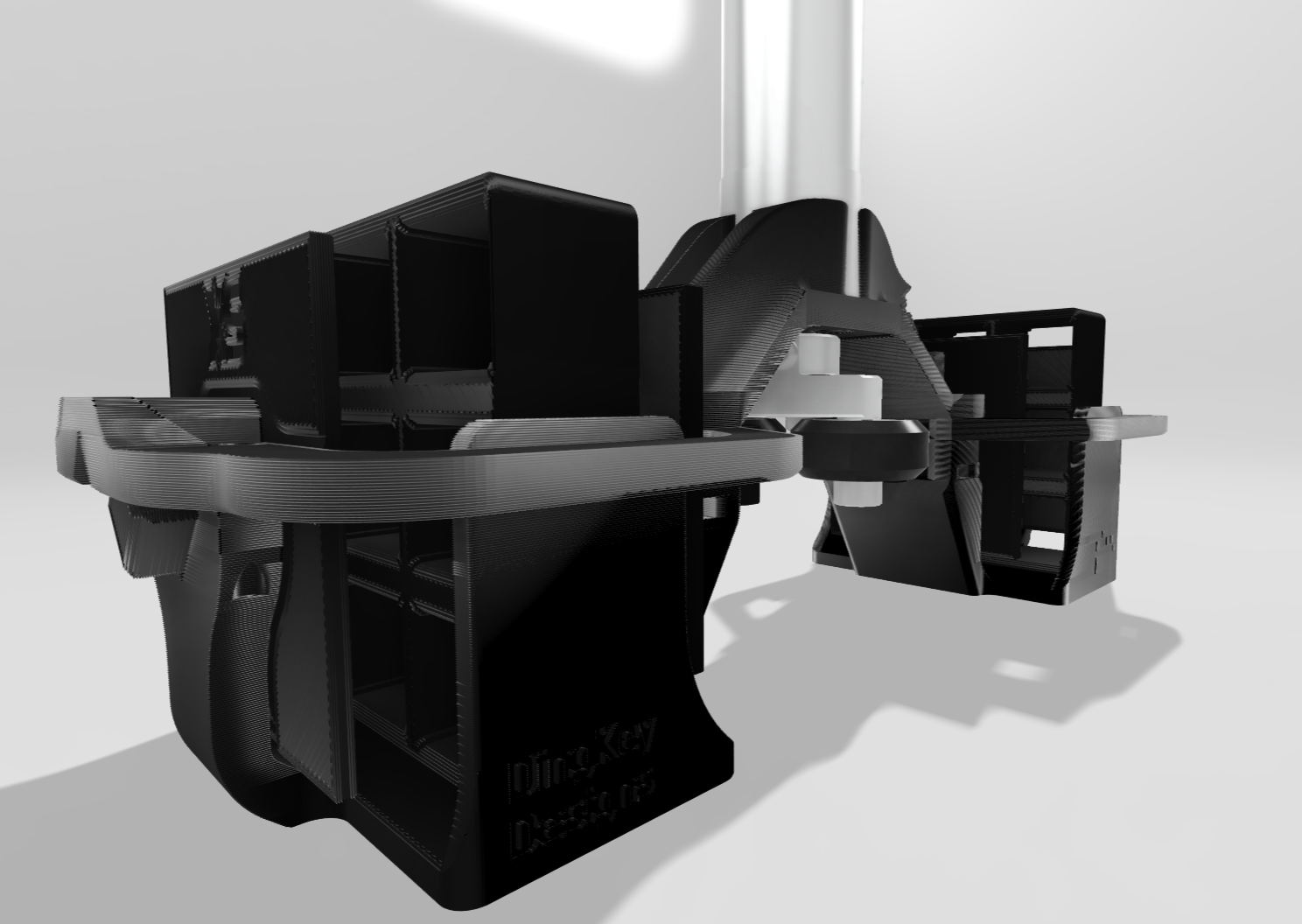

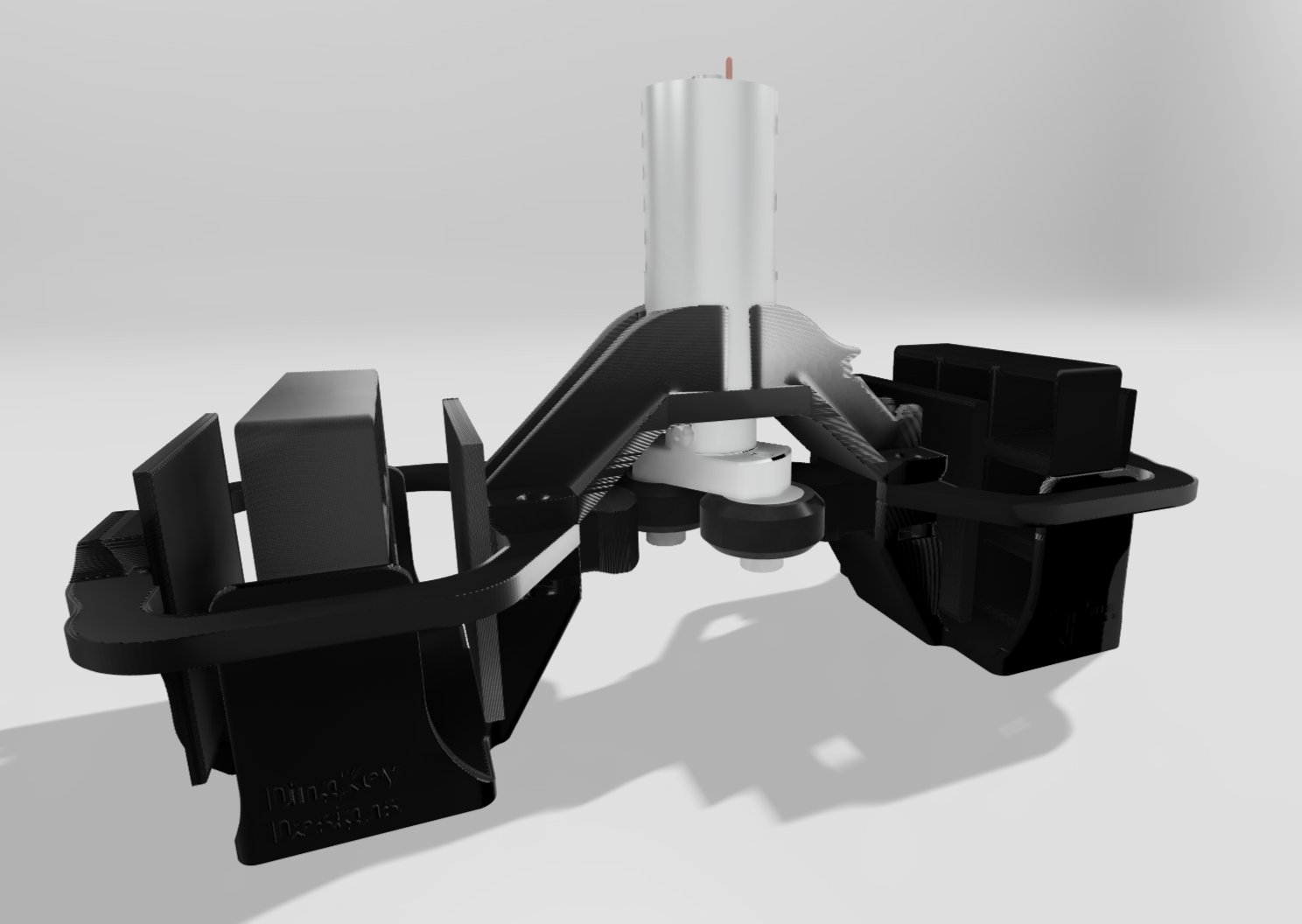

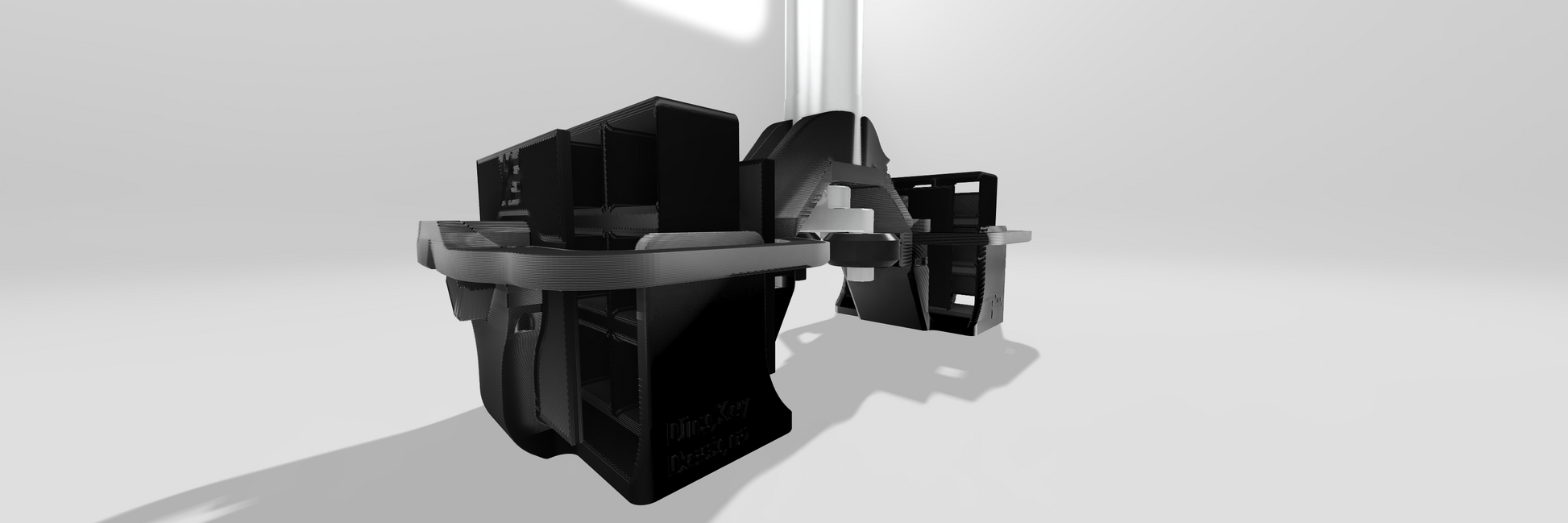

*GEN 3.5 UPDATE - Machine will include CNC Aluminum wheel cam by default*
BASE MACHINE HAS ONLY BEEN TESTED TO WORK WITH 4 - 3.6MM TRAVEL
IF YOU ARE USING SHORTER TRAVEL SWITCHES SUCH AS BCPS, PLEASE PURCHASE THE LONG POLE ADDON WHICH ADDS ADDITIONAL TRAVEL SUPPORT

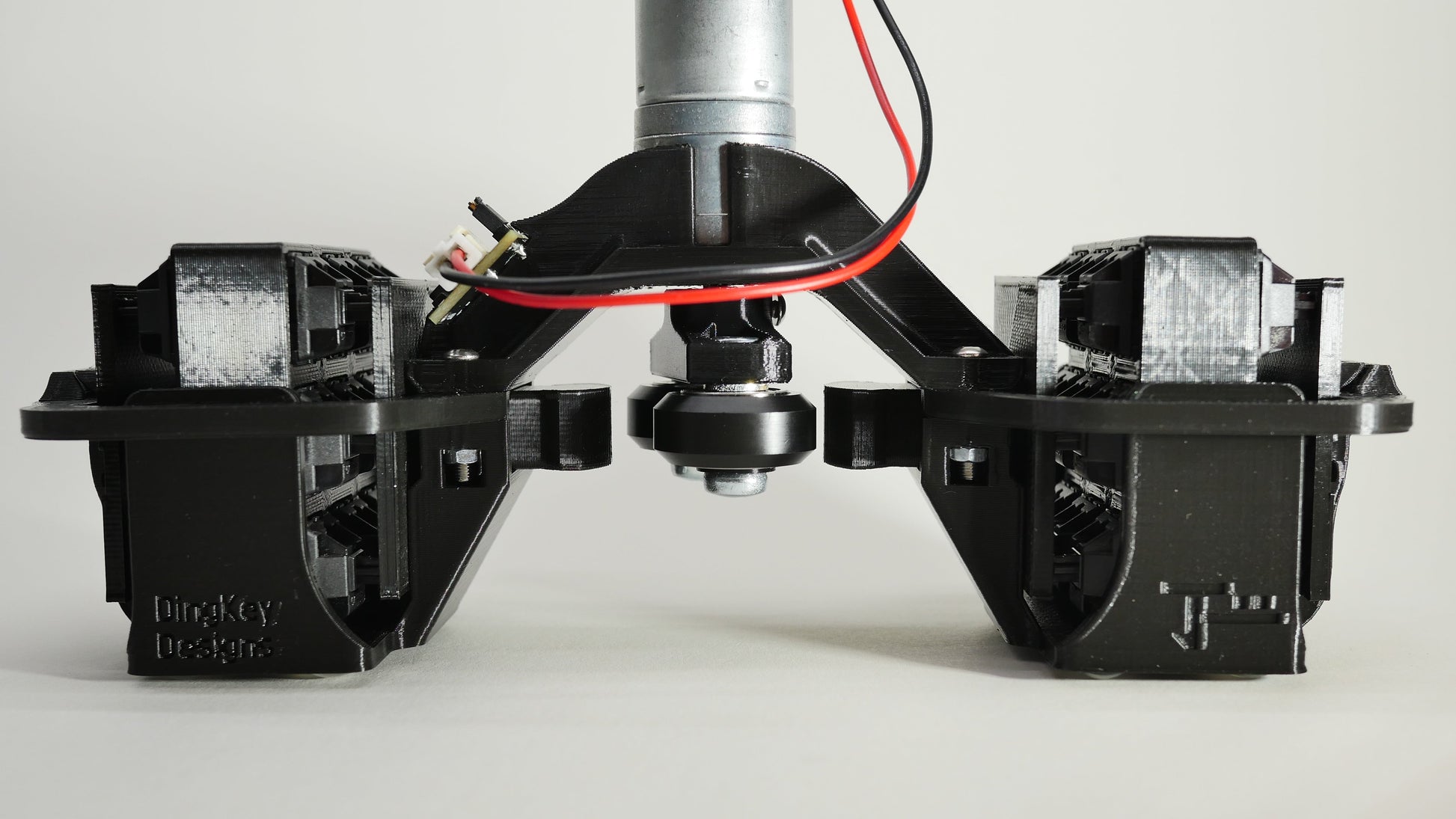

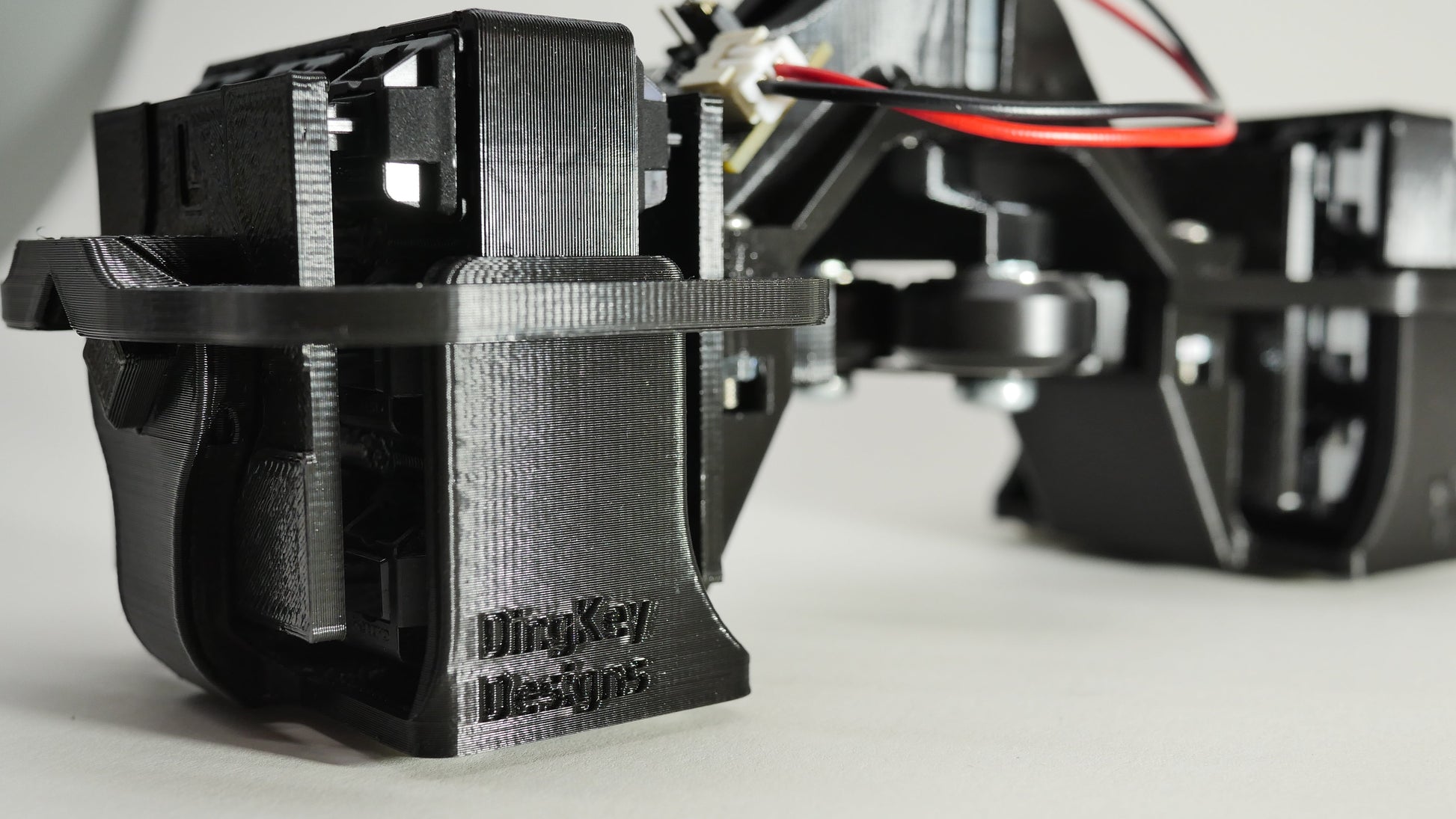

Mechanical Keyboard Automated Keyswitch Break-In Machine GEN3 design
Capacity: 36 switches
Power source: USB-C 5v
Motor: DC motor with metal gearbox
Weight: 251g
Dimensions (L x W x H): 200 x 80 x 125mm
On-the-fly Adjustable speeds:
| Speed |
Voltage |
RPM |
Actuations / hour |
Peak power |
Avg power |
| 100% |
24v |
155 |
18,600 |
3.2W |
1.9W |
| 75% |
18v |
112 |
13,500 |
2.6W |
1.3W |
| 50% |
12v |
73 |
8,750 |
2.1W |
0.85W |
4-Way Expansion Kit adds up to 36 additional switches for a total of 72 switches

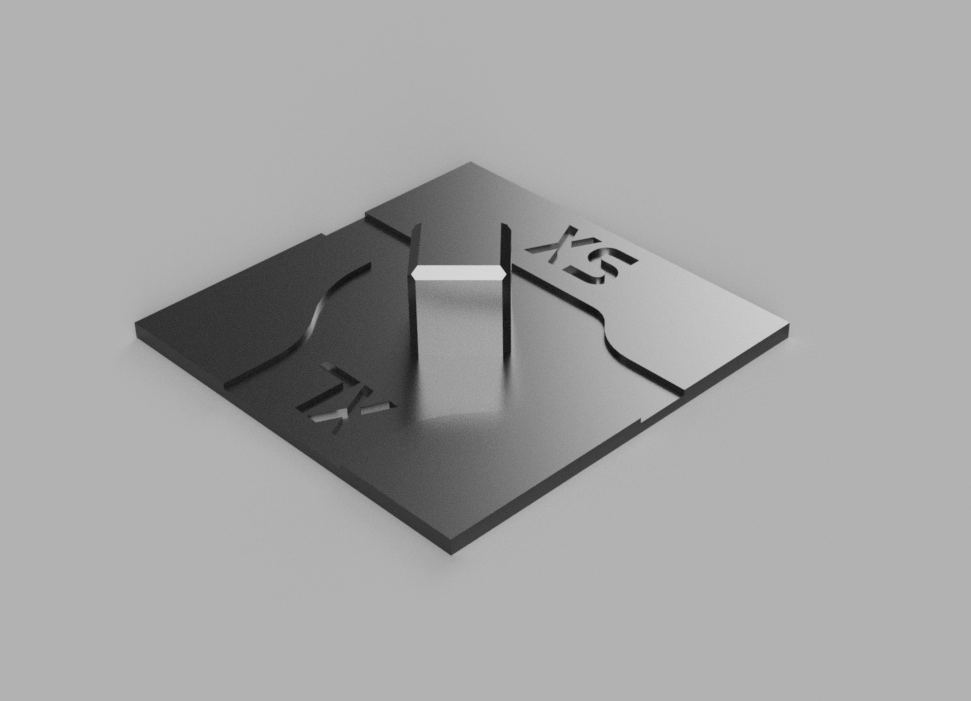

OffCenter Kit adds capability of off center switch actuation for smoother break-in results
Product manuals / Documentation
Spare parts
Sleek low-profile design is able to run continuously without any overheating and has been proven to achieve over 18,600 actuations per hour without any issues.

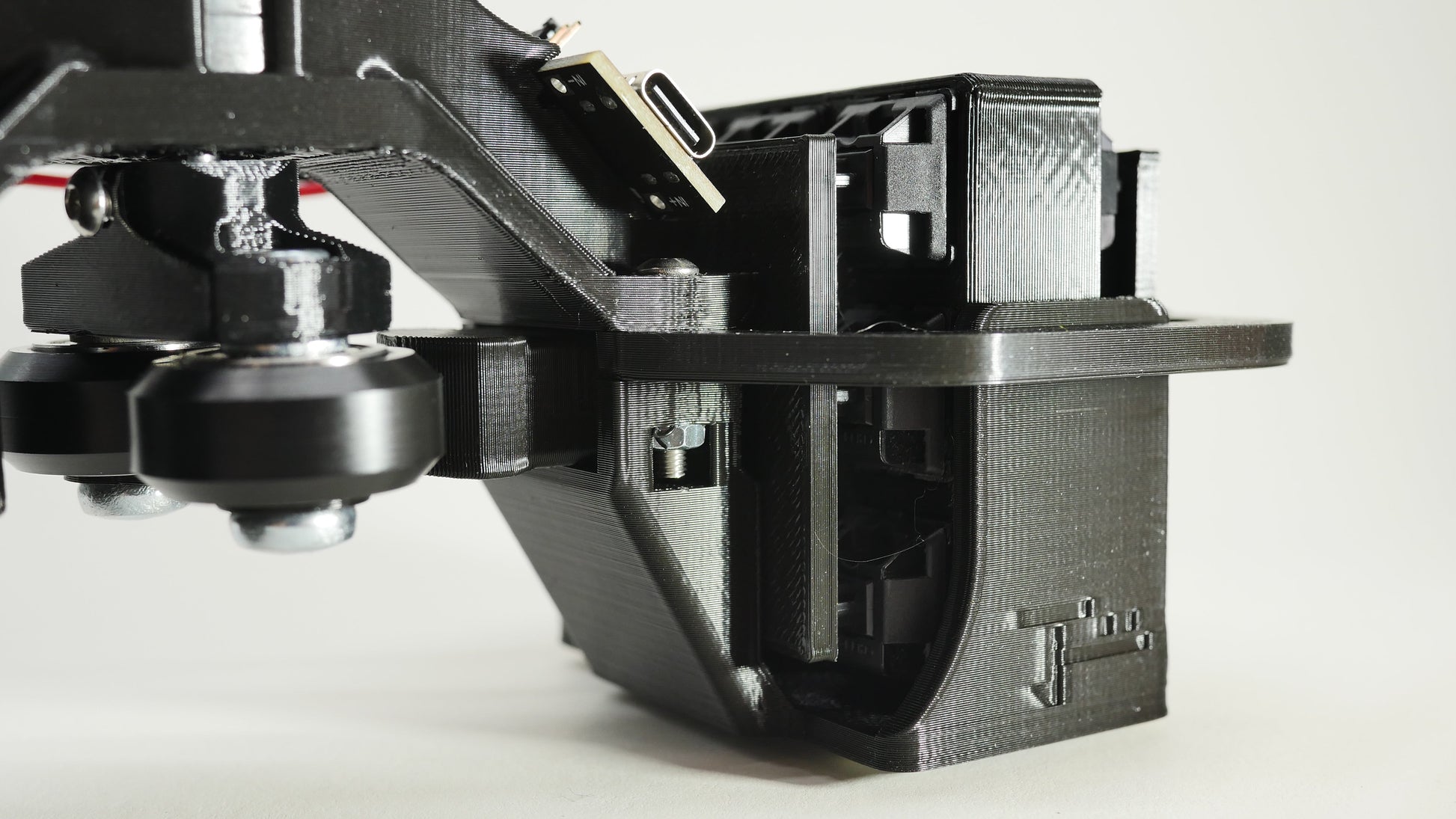

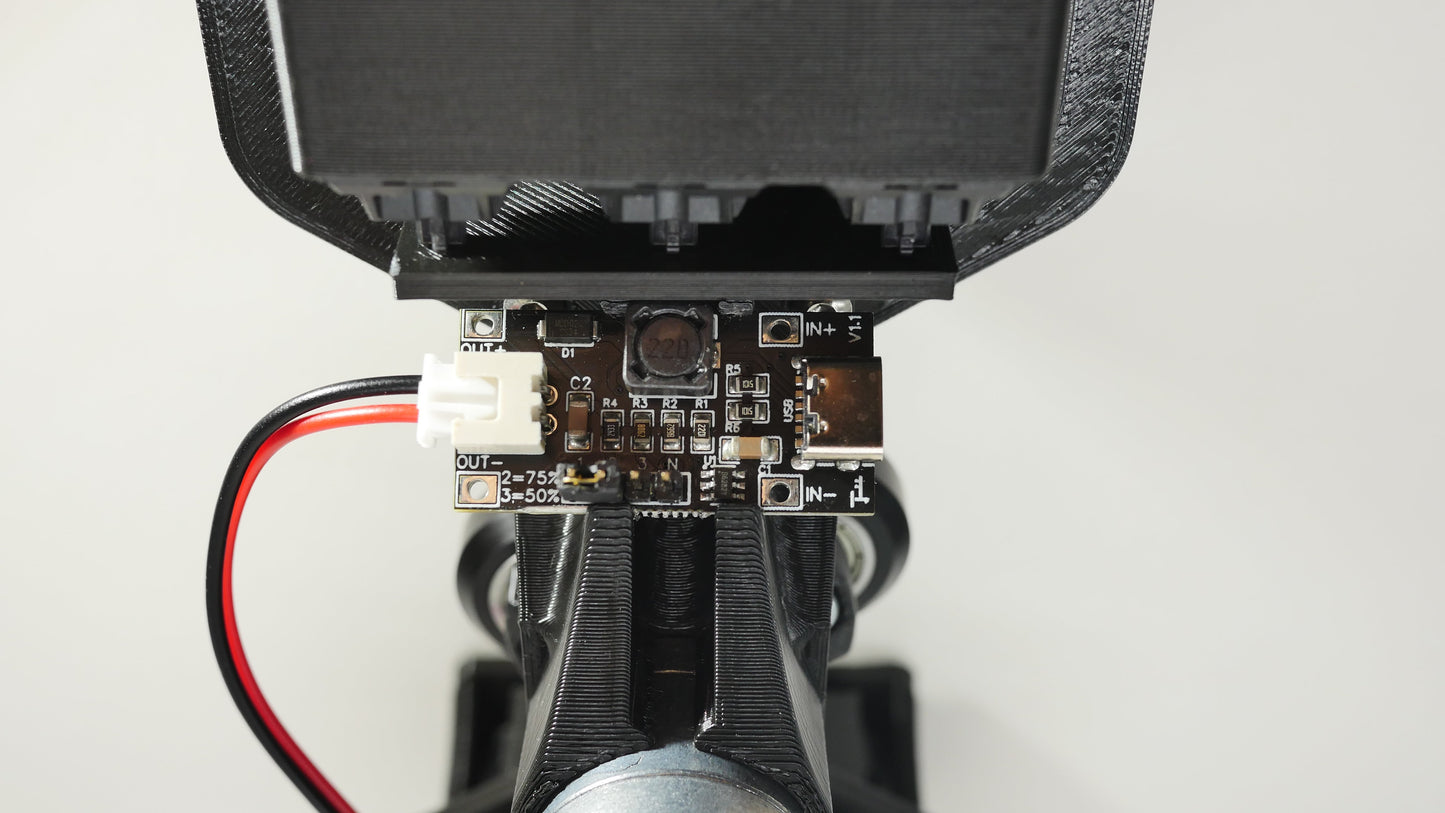

GEN3 machine features updated chip with USB-C input, upgraded DC motor and updated set screw cam

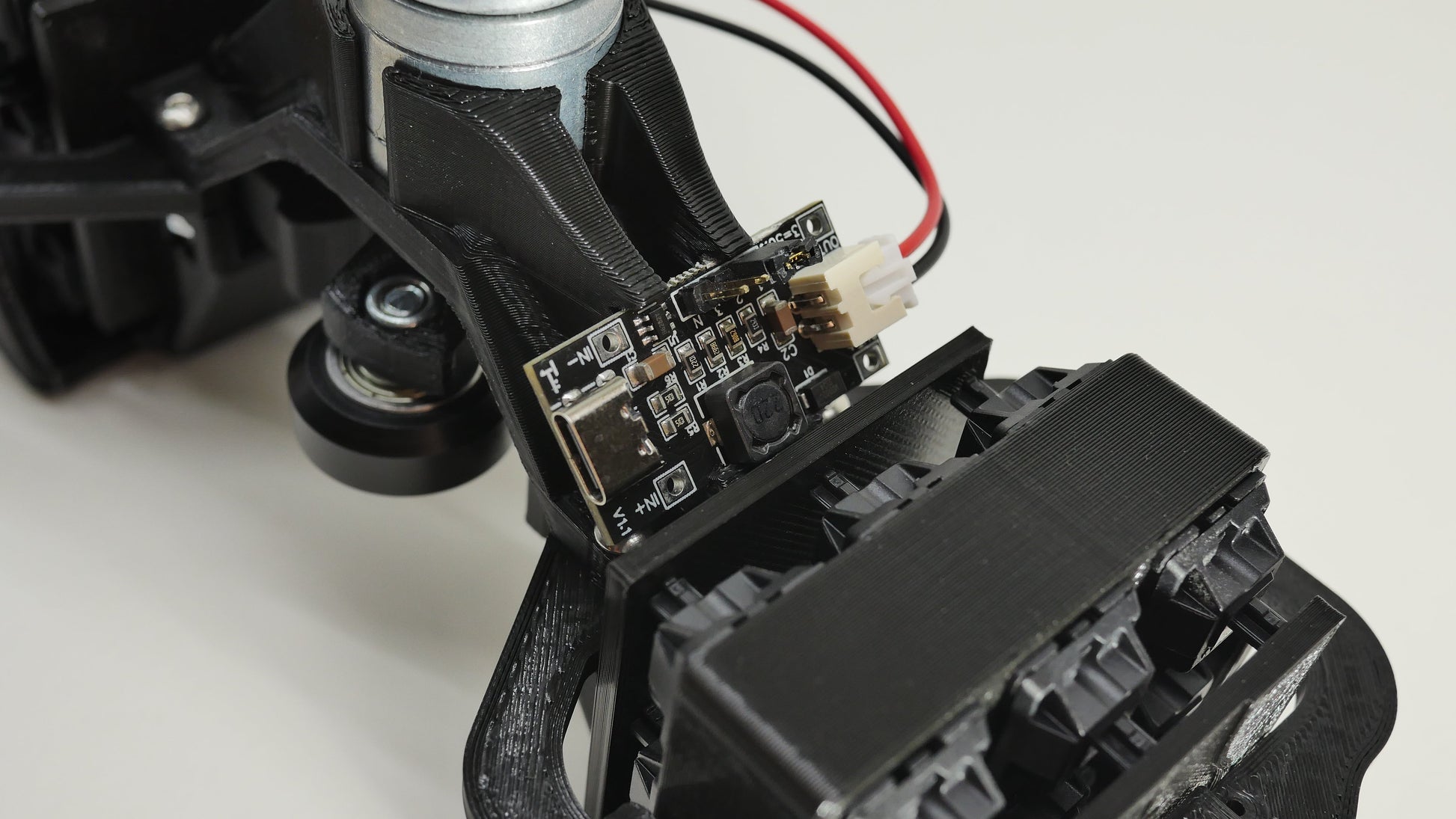

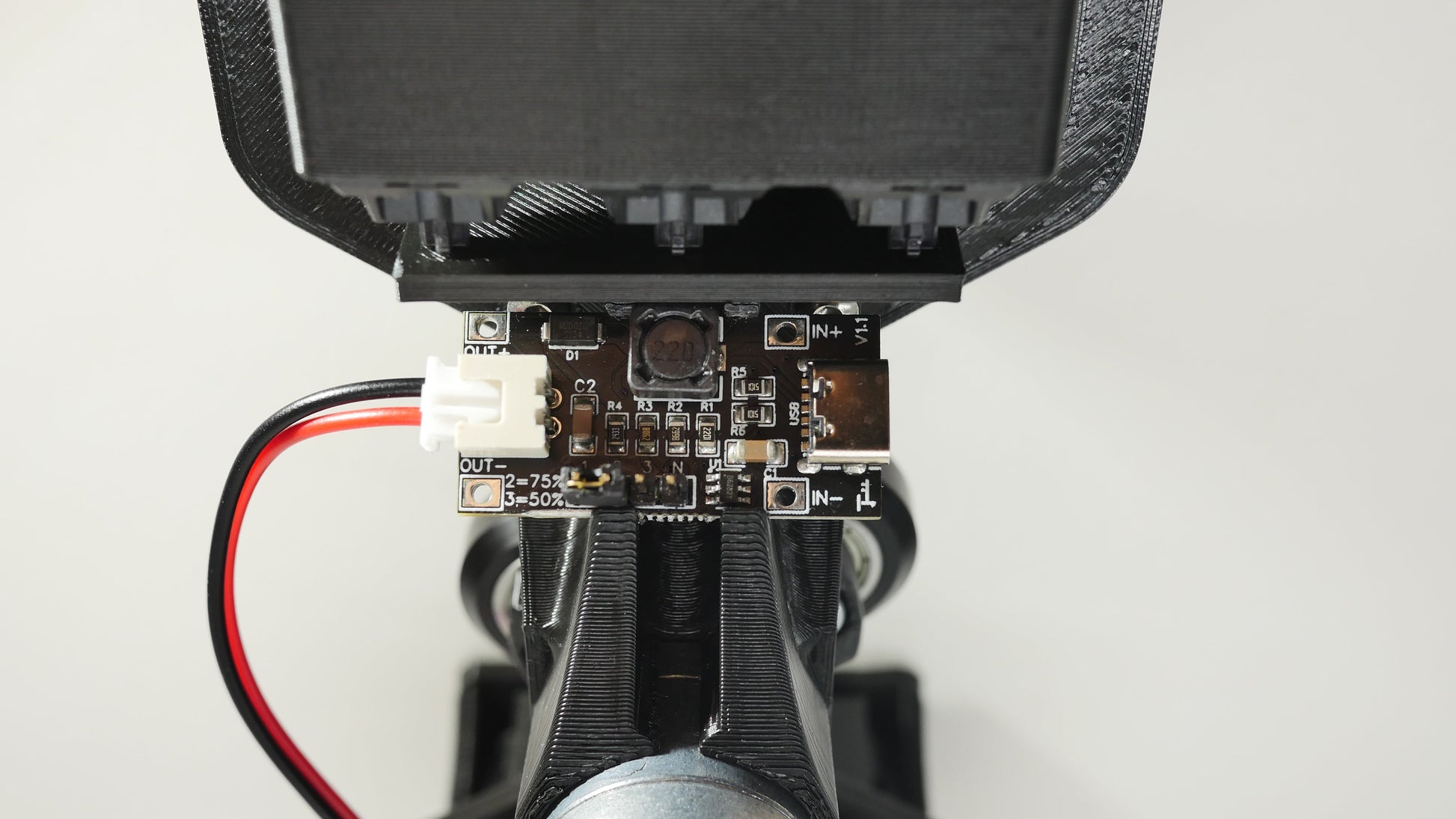

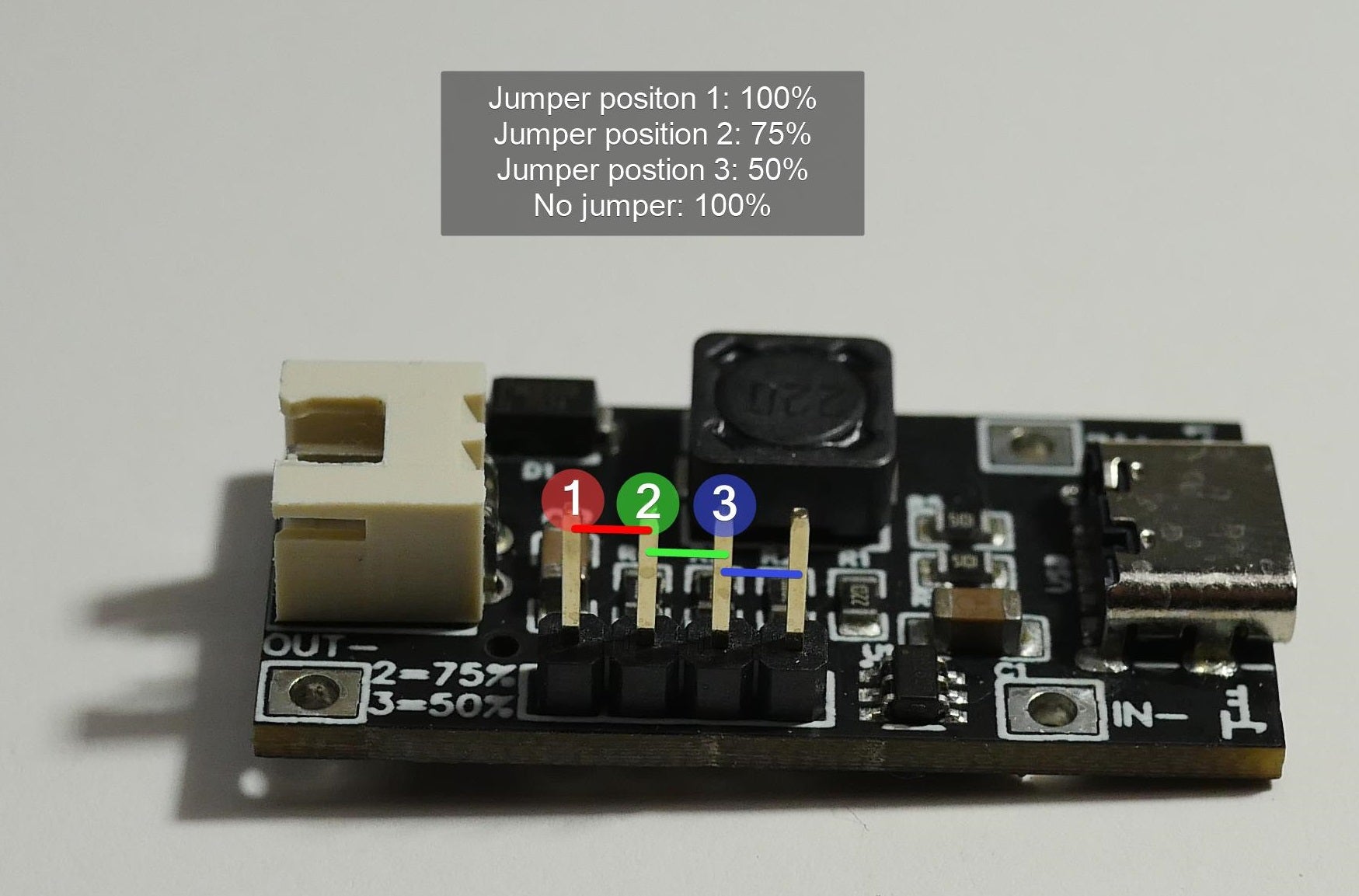

New chip allows for on-the-fly speed adjustment without the need of a volt meter for 100%, 75% and 50% speeds.

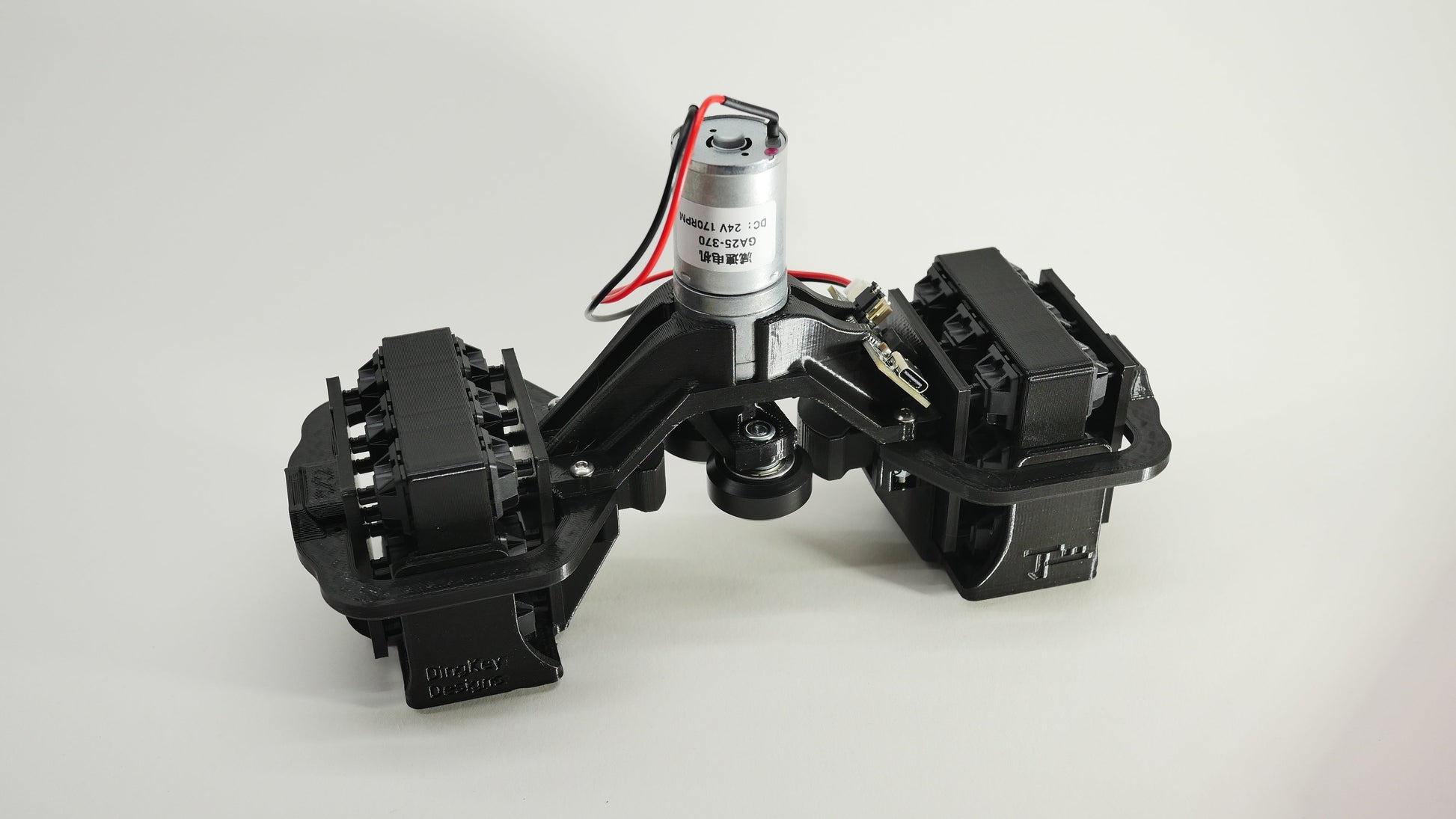

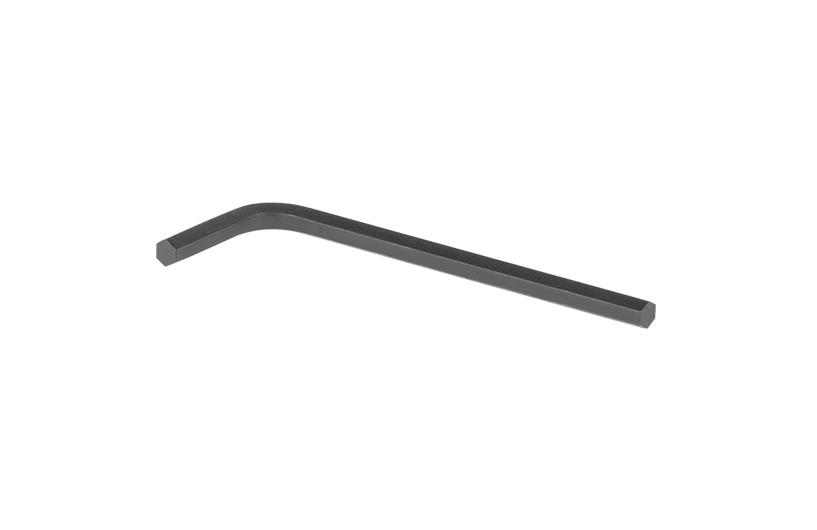

Machine with motor, wheels, and boost converter come fully pre-assembled. A 2mm hex key is used to take apart the machine.
Detachable cable and boost converter for adjustable speed control (default is max speed @24v)

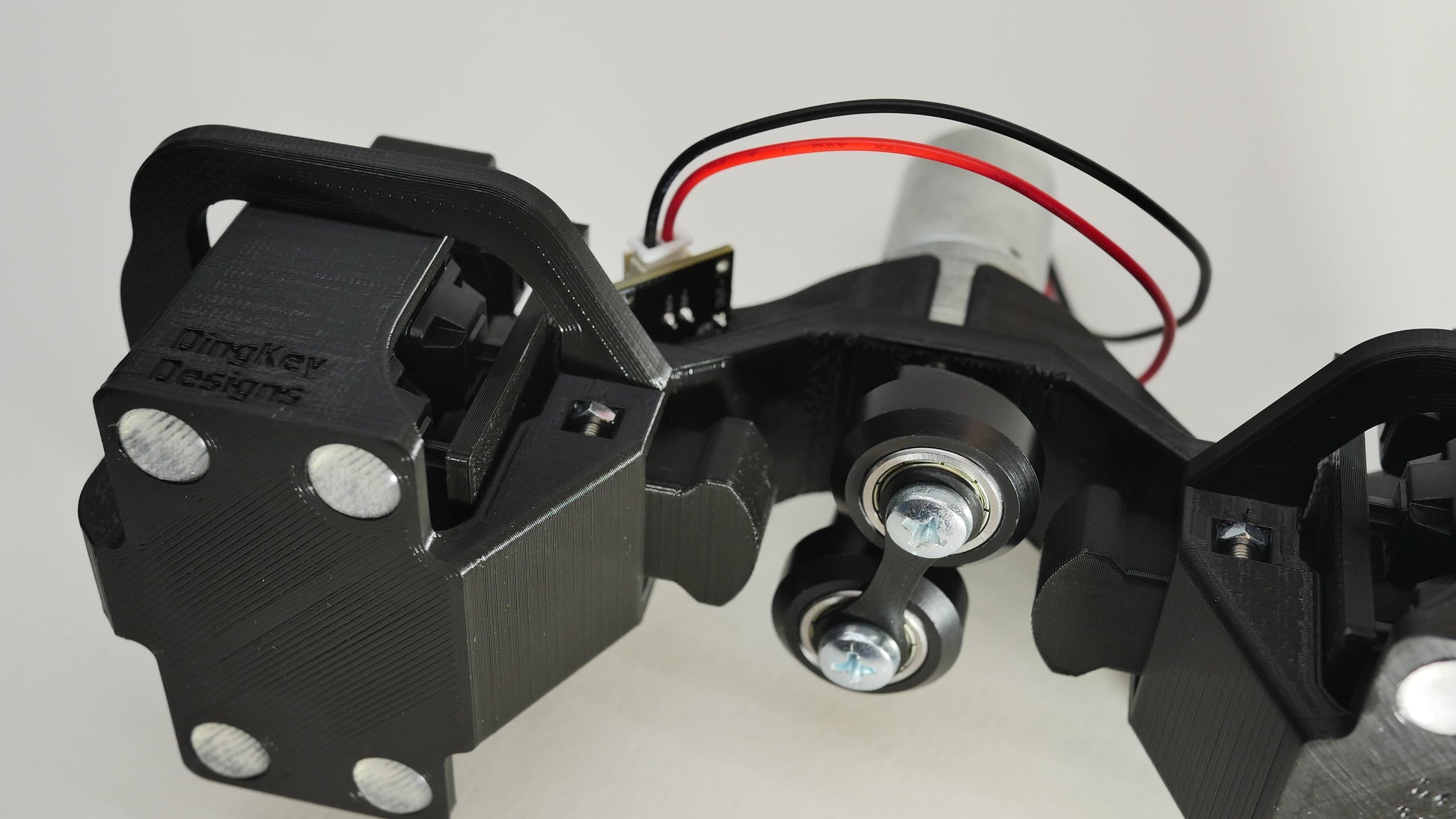

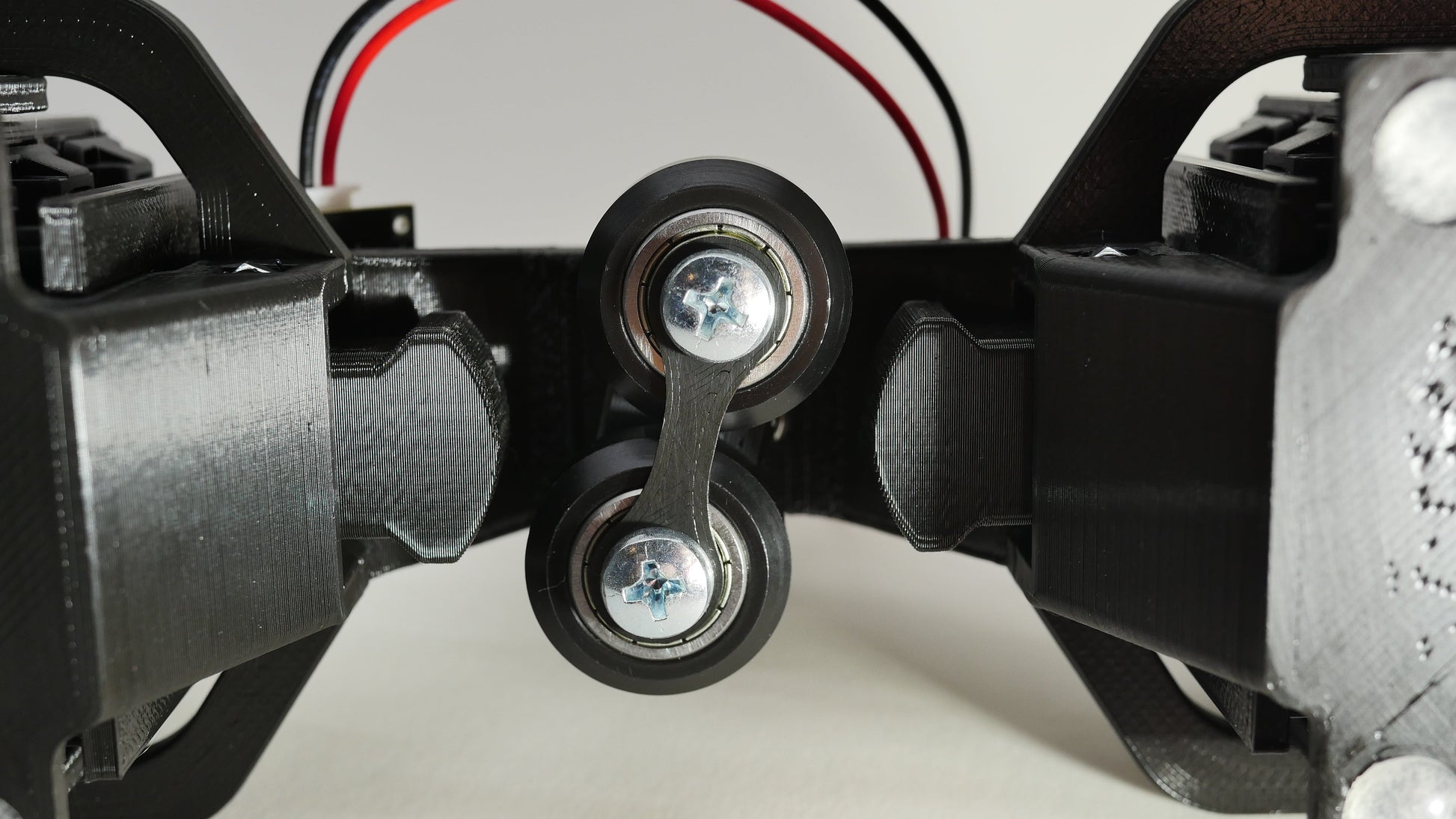

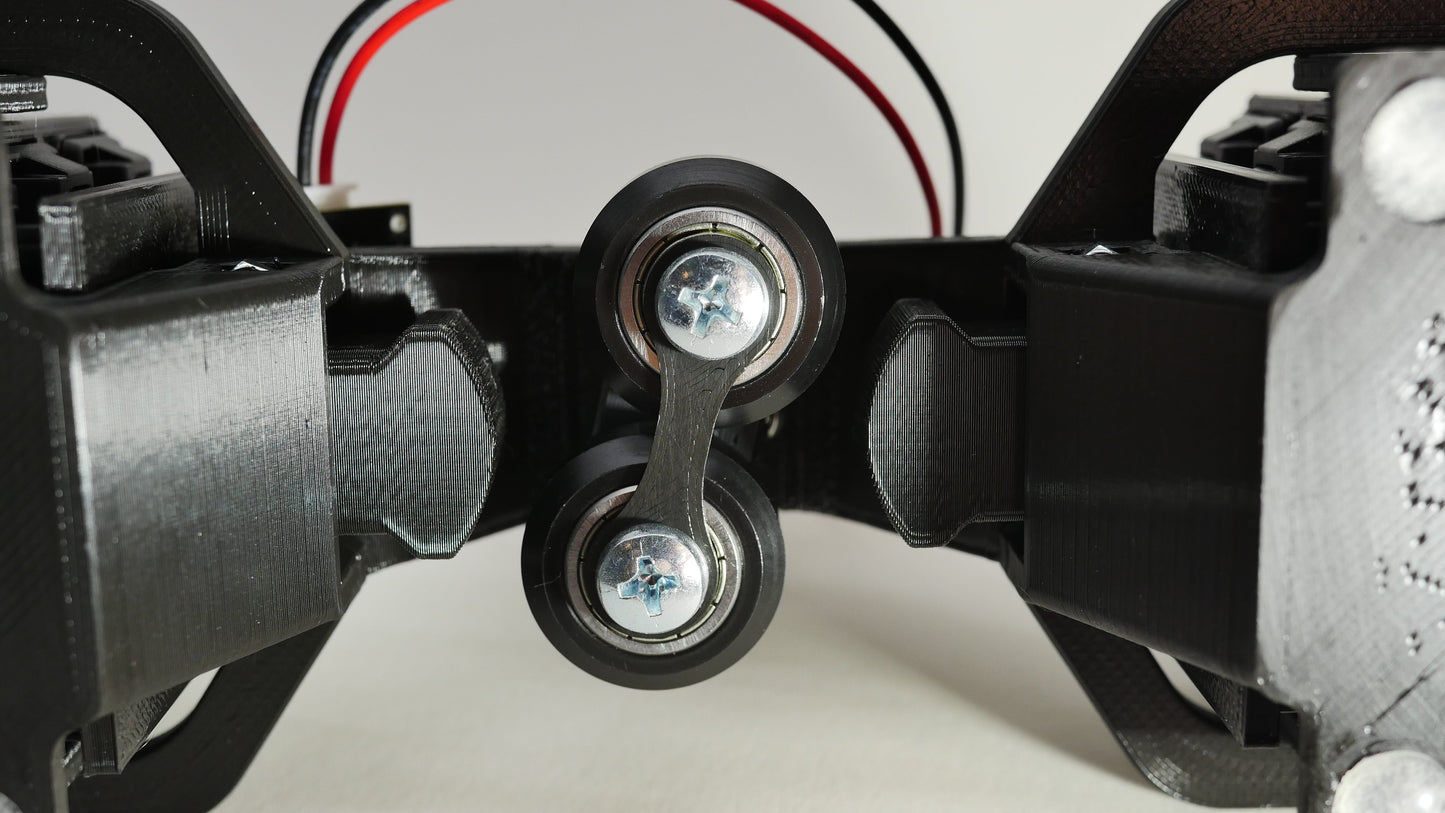

Durable ball bearings and POM wheels ensure minimal wear during continuous operation
Trial runs conducted with all 36 switches installed (heavy linears with 67g force over 24+ hours)
Each machine will be made to order and processed accordingly.
WARRANTY IS 90 DAYS FROM ARRIVAL DATE OF MACHINE
Current lead time is roughly 1-3* weeks!
*CHECK NEWS PAGE / DISCORD FOR LATEST LEAD TIME AND/OR UPDATES*
*NOTICE*
Please do not use a Samsung charger as we have tested these to be inconsistent with the machine for some reason, we will be stocking micro USB cables, adapters, and power bricks up on the website shortly
