AM5 Stainless Steel Backplate
AM5 Stainless Steel Backplate
Couldn't load pickup availability

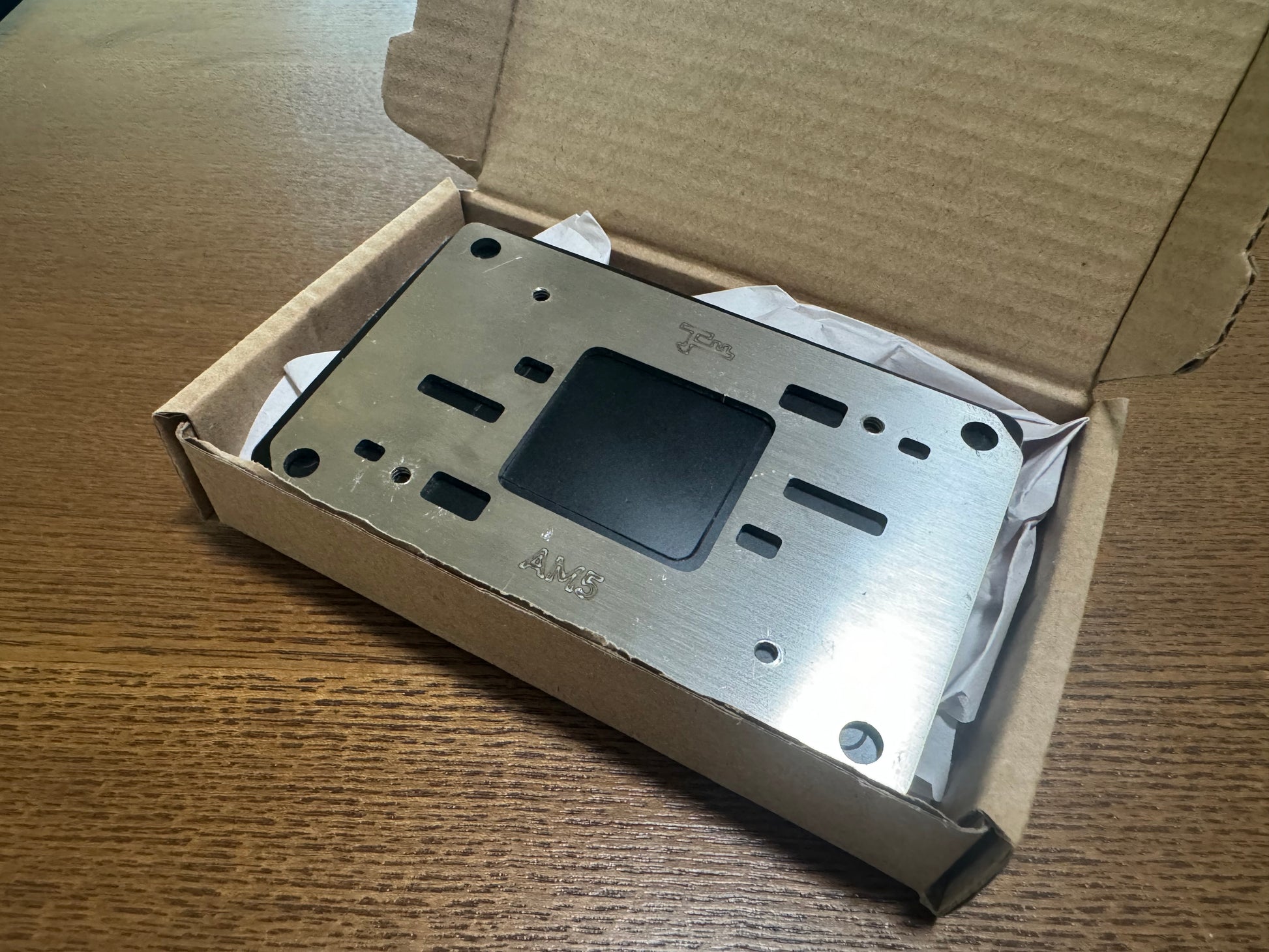

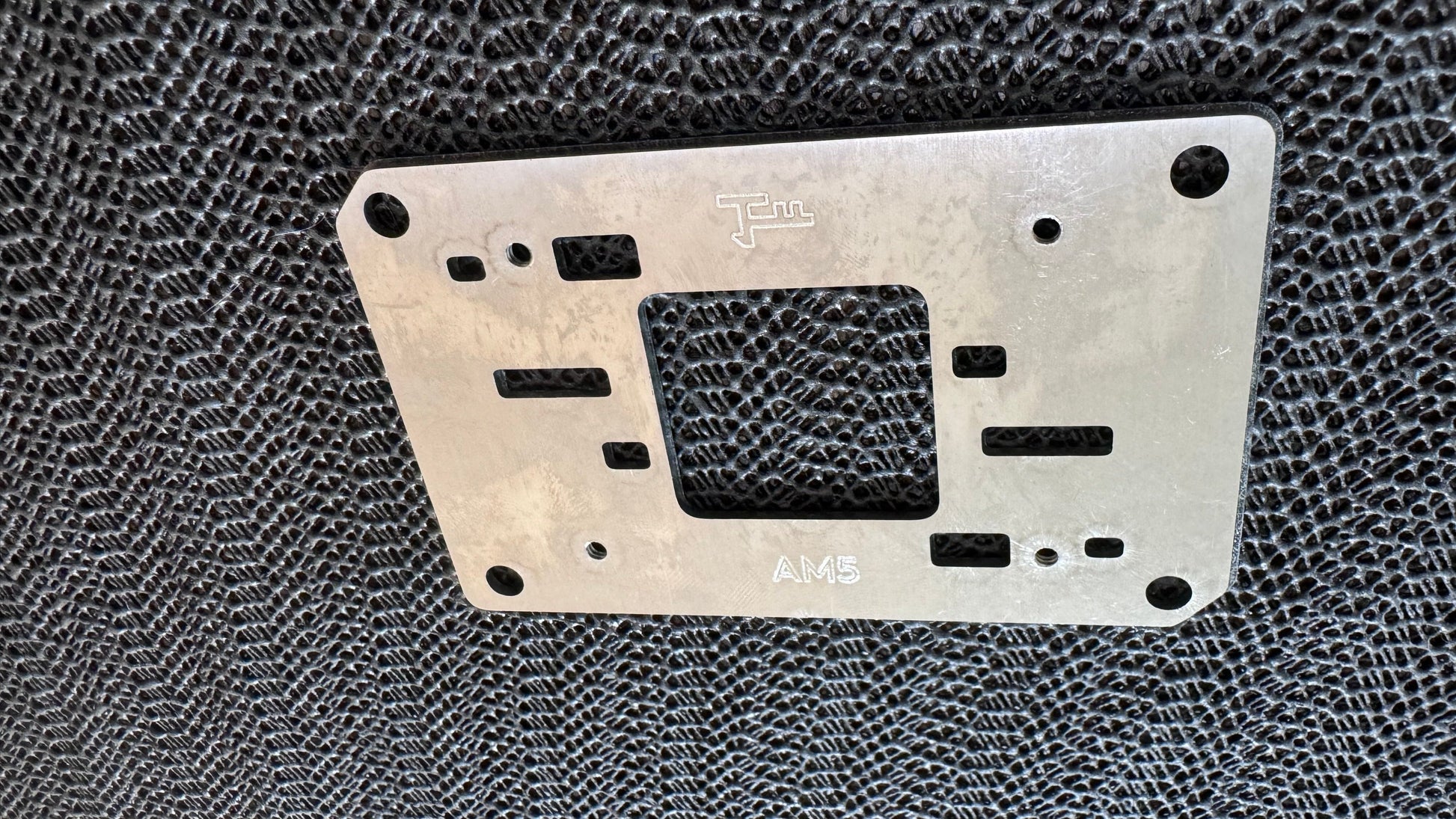

Introducing our custom made stainless steel backplate! (Pandoplate) Designed to replace the original stock backplate found on ASRock series AM5 motherboards in order to facilitate easier mounting of AXP90 or similar coolers without needing to use smaller nuts.
Installation Documents can be found here
INSTALL AT OWN USERS’ RISK WE ARE NOT LIABLE FOR DAMAGE
NEW BATCH AUG 2024, CORRECTED STICKER AND LASER ENGRAVING
INCOMPATIBLE WITH:
MSI B850i FPG TI Edge

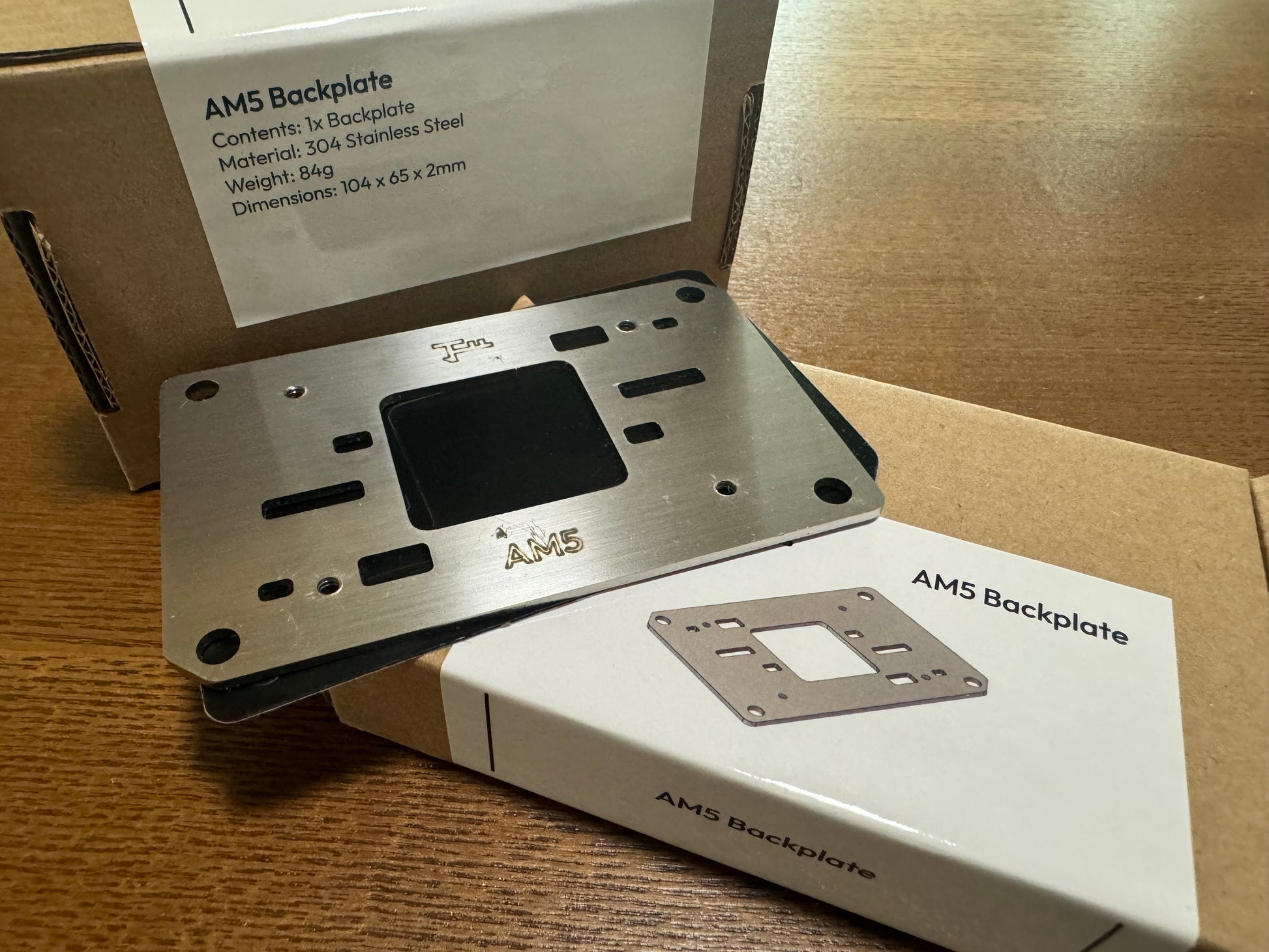

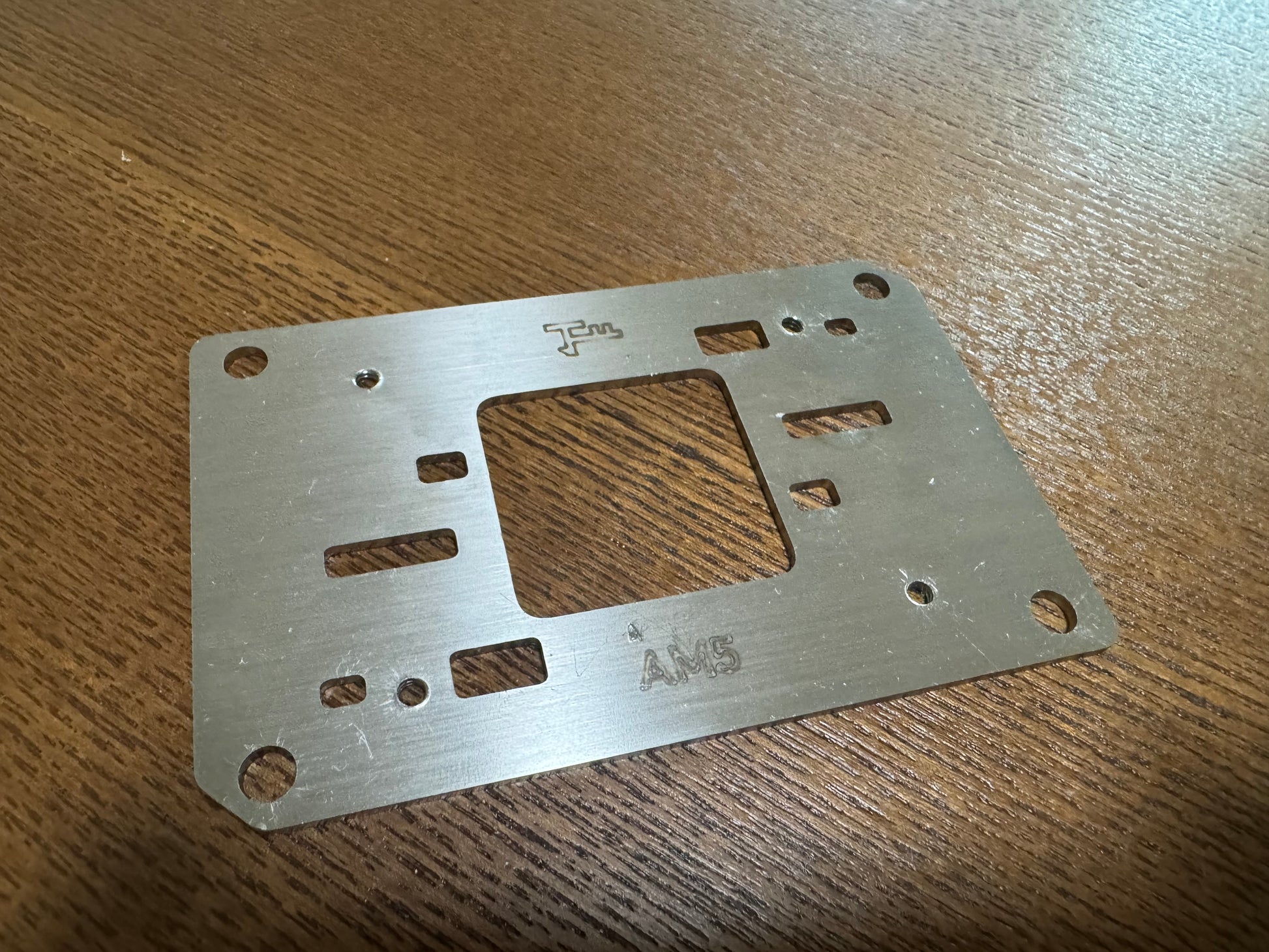

The backplate only measures a mere 2mm while being incredibly stiff due to the stainless steel construction.

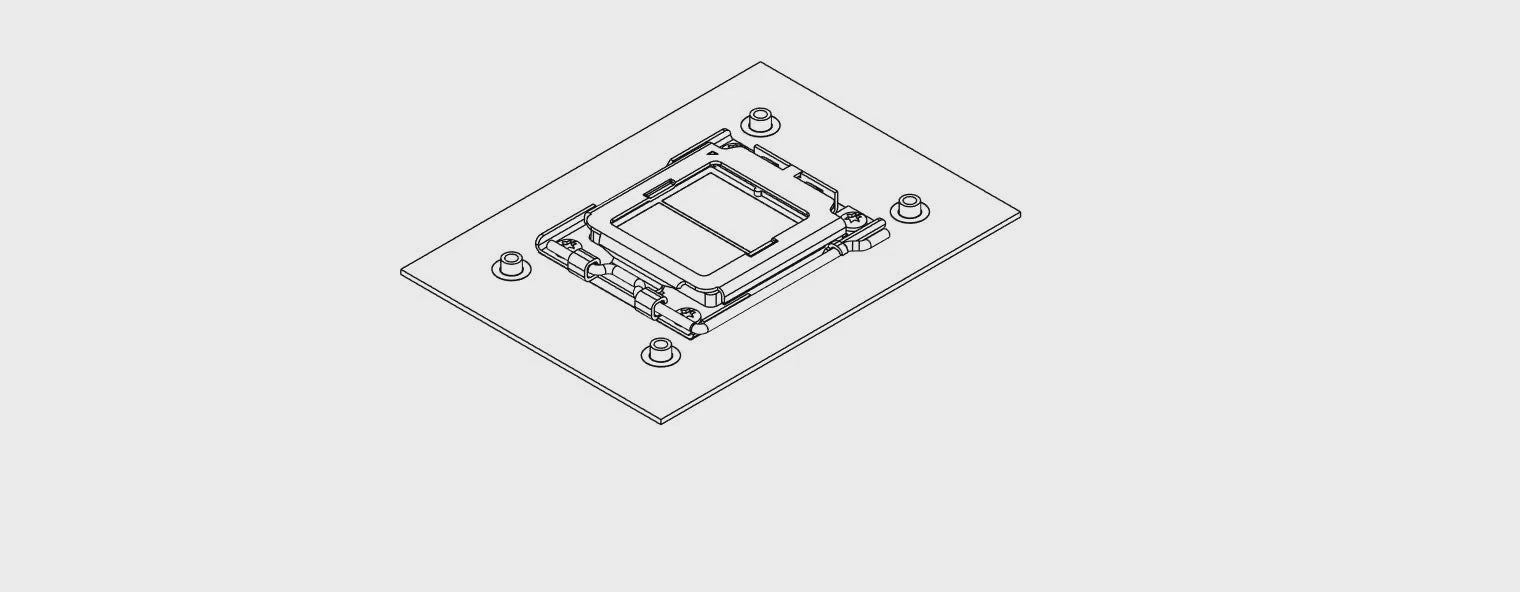

The backplate can still be installed perfectly fine on AM5 motherboards with instructions listed below.
Share
I Have the "meme" cooler from China, the Jiushark JF13K Diamond.
It worked great on my Intel 1151 motherboard, but the backplate for AM5 was missing from my order.
So I bought the AM5 backplate from Thermal Grizzly, since they are "a reputable brand".

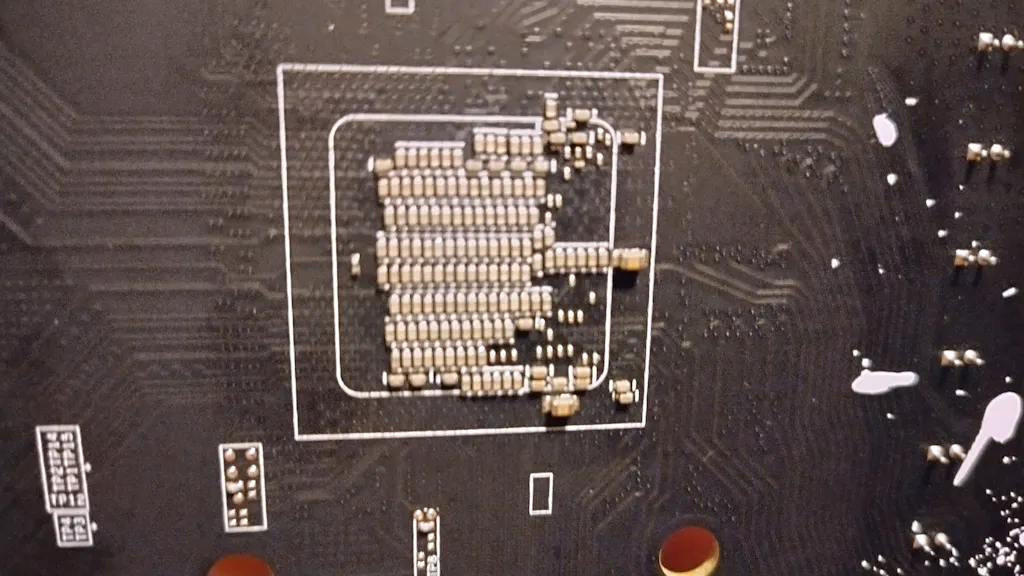

It would have been fine, if they had said something about it only working on motherboards that keep the components on the back of the motherboard within the inner "border" behind the CPU socket (see picture), but they didn't and my motherboard didn't either. (I told them about the problem, and they couldn't help, they didn't even put a warning on their website, like I tipped them about.)

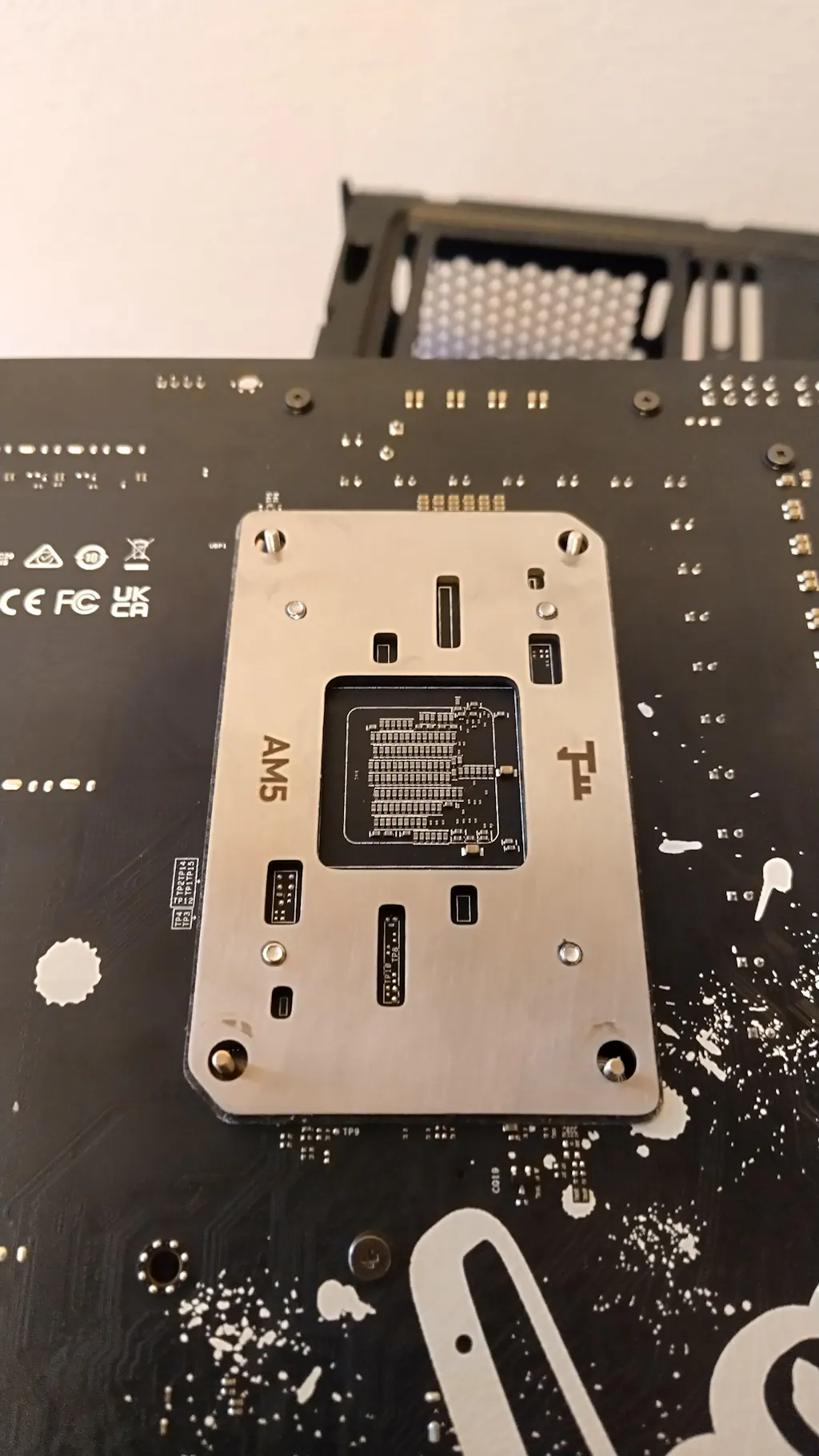

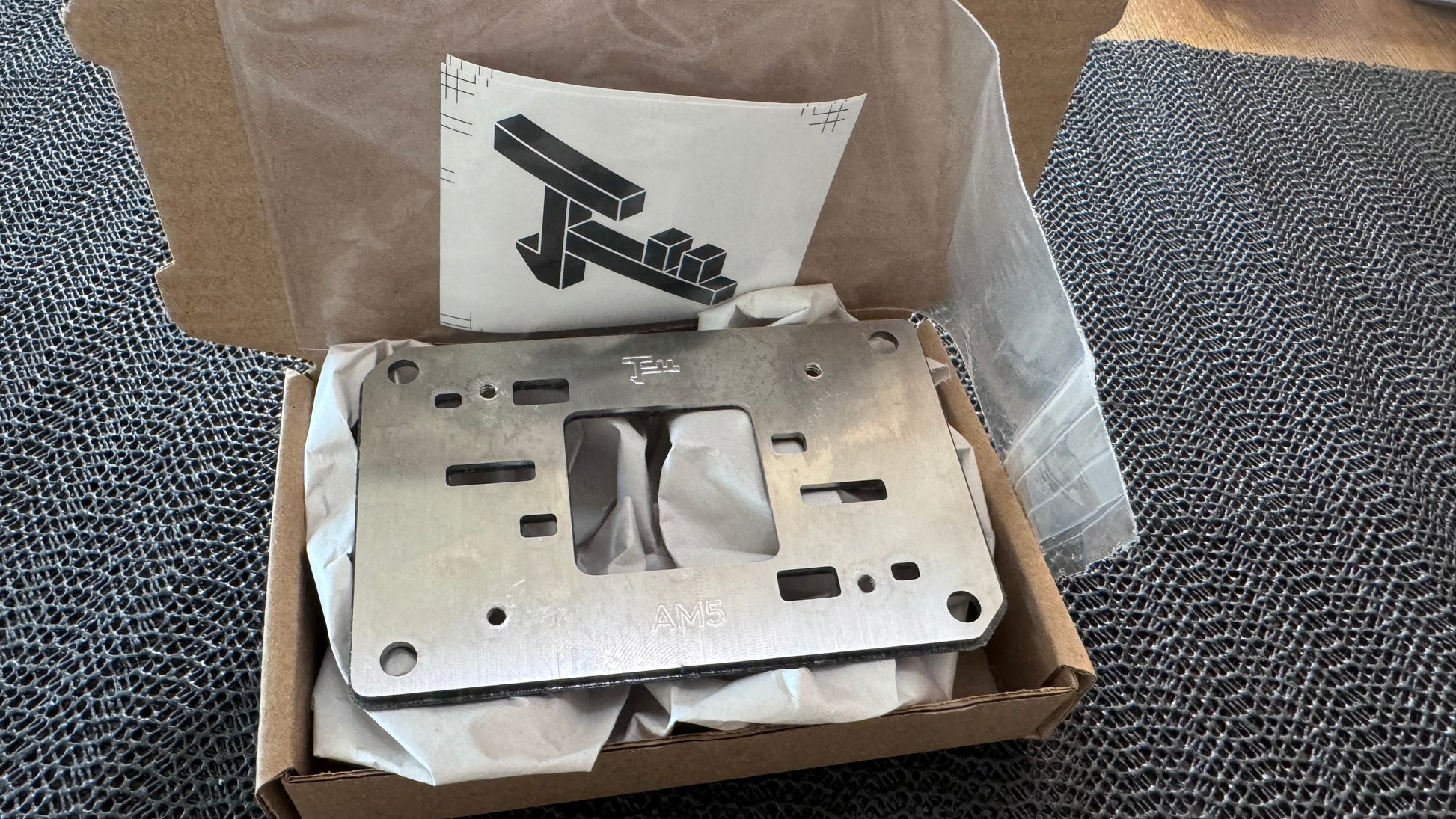

So I ordered the AM5 Stainless Steel Backplate from DingKey Designs, after checking the photos and realizing that their backplate has bigger holes for the components behind the socket.
It clears everything PERFECTLY!
My motherboard is the ASRock Livemixer B650
Fit my Asus b850 I motherboard nicely.

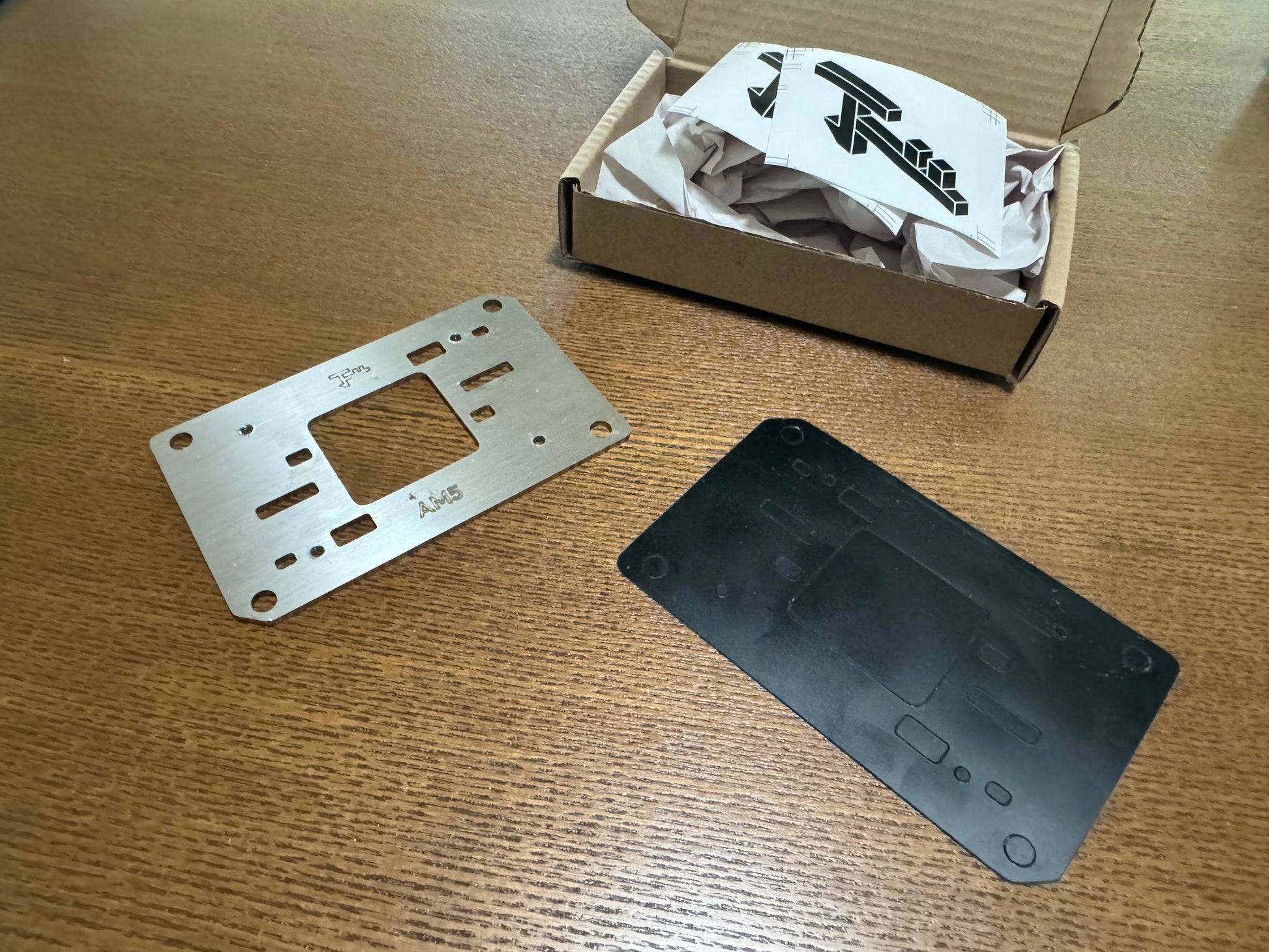

I bought this for an am4 cooler, this backplate made all the transistor cooling slots a tiny bit bigger, which allowed a covered transistor with the stock plate to be cooled by air now. Everything else is perfect even has poly backing! A+
Works great with the ASUS ROG Strix B850-I Gaming WiFi
Works well on Asrock B850i Lightning WiFi
